Samsung Galaxy Tablet black screen Fix 110


A common issue you may realize that affect Samsung based devices is the issue of the Black screen, the Tablets are no different and that’s why today we are looking at the Samsung Galaxy tablet black screen fix which will show you how to fix any Samsung based tablet thats having the issue of a Black screen despite its model and this will especially work for those 10.1 inch versions which I will be using for demonstration purposes in this article today.

The Issue In detail

When you boot up your Samsung Galaxy Tablet you are unable to see anything on-screen as the display is black, in most cases you can tell the device is powered on but nothing shows on the display as the screen remains blank and you may be able to hear booting sounds indicating that it’s on but nothing is shown on the display.

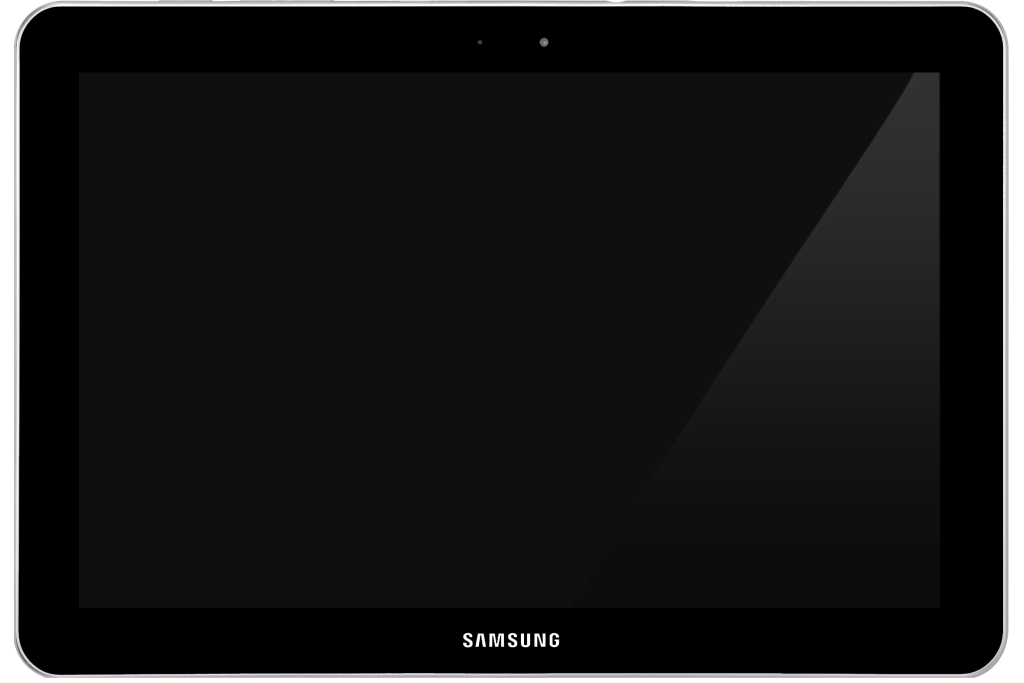

samsung galaxy tablet black screen

Devices Affect by the Black Screen or Blank Screen Problem

The issue can happen in any Samsung device especially in its Tablet line regardless of the brand so this could happen to the Samsung Galaxy Tablet 10.1,Samsung Note 10.1 or any other tablets including the 7 and 8 inch variants that exists. In this tutorial I will be using a Samsung Galaxy Note 10.1 to demonstrate but remember that the principle applies to other devices as well made by Samsung as they all have similar internals.

The Cause of the Black Screen Problem

The problem of the Black screen issue is something that has affected every Samsung Device including their phones and in most cases the issue is caused by a number of things, but in the case of the Samsung Tablets that this issue is happening it’s caused by a loose display LCD ribbon cable that can be fixed as shown below. I see this problem happening mostly in its 10.1 inch tablets and others devices.

What will you need for this Fix.

To attempt this fix you fix need a blunt edged object, a cred card or similar hard plastic device will do or a phone or tablet opening tool kit if you have one available.

samsung galaxy tablet black screen

Tablet or Phone repair/opening tool kit-optional but the best thing to use

How to fix the Samsung Galaxy Tablet black screen Issue.

So what you will need to do is:

1. Power off your tablet and make sure it actually off.

2. You will now need to remove the back of the tablet which will take some time and patience as its usually clipped in placed so what you will need to do is use your blunt edged object or credit card and get it into the seams that hold the tablet together. If you cannot see the seams on your tablets sides its then usually where the front screen meets the body of the device and the trick is to get the blunt object or credit card into the groove between the screen and the body of the tablet.

3. Take your time and be sure not to break anything in the process, it can take up to 15 minutes or more to get the back cover off. When its separating you should hear the clips that hold it together click on separation. Also if you device has a S-pen please remove it from the holder while attempting this as it can get in the way when left in place.

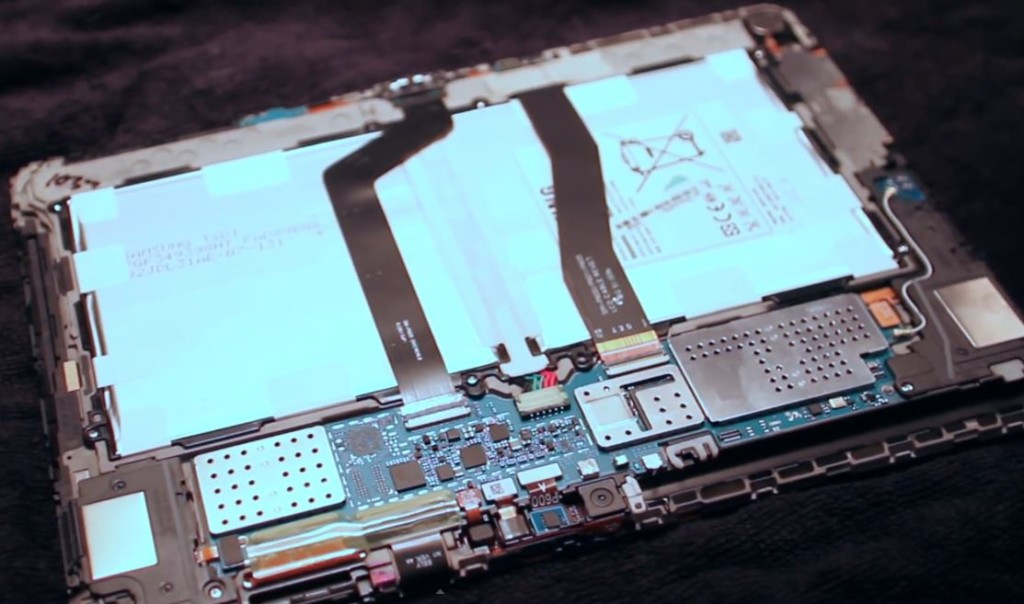

4. When it’s opened you should notice a ribbon cable that’s marked as the LCD cable that runs over the battery its impossible to miss as its flat and located on the right. There are usually two cables that look-alike, but the one in question is on the battery side with picture of a dumpster with a strike through.

samsung galaxy tablet black screen

Connector on the right

5. The cable in question is usually loose so open the clip down slot by flicking it up and sliding out the ribbon cable, now slide it all the way back in to its slot and while its firmly in there and flat against the battery, when satisfied clip the lever back in place to hold the ribbon firmly.

6. Close the back cover and reassemble everything and power the tablet back on which should now power on and the display will start showing again.

Troubleshooting

In case you are having issues please try the floowing:

1. Leave the LCD cable out for a few minutes before reconnecting it.

2. Make sure that the LCD ribbon is connected properly or the issue will persist.

3.If all else fails and you have exhausted all options then disconnect both ribbon cables and remove the screw from the battery and lift from the lower side up and gently disconnect the battery terminal, leave this out for 30 minutes or so and press and hold power while the battery is out for about a minute to help drain residual energy inside the tablet. When the time has passed reconnect and install the battery back in place with the back cover and power up the device.

That just about wraps things up for this fix if you have any questions or you would simply like to confirm that this method has worked for you please do share your experience in the comments as it helps others who are having the issue as well solve their problem and also remember to check out our others articles and consider subscribing to this blog and become a part of the family.


About Ricardo Gardener

I am a Technology enthusiast and a Blogger who loves nothing more than playing with new exciting Gadgets and technology. In my spare time I repair and maintain computers, which is just a few of my many hobbies.
Please feel free to leave a comment below and subscribe to this blog. Thank you very much for your visit.


:) How well did I do? Take a moment to leave a comment.

110 thoughts on “Samsung Galaxy Tablet black screen Fix

  • Trigger

    The information reads fine. I will now attempt to see if my tablet will come back to life. I’m not the most tech savvy person when it comes to this stuff. Thanks

  • Ariamehr

    Hi,
    I have black screen issue with tablet galaxy 10.1 note 2014 edition,
    Tablet works properly, when i turn the screen off i can’t turn it on again, screen is on but all black, when i restart tablet it start working, again when i turn off the screen i cant turning it on.
    Is it the ribbon?
    Thanks.

    • Ricardo Gardener Post author

      Might be a Firmware issue with ROM on your tablet, are you ruining a custom or the default ROM? Updating might help your situation as I saw similar situations before when running custom ROMs were the phone would go into a sleep of death so to speak and I had to reboot each time much like you describe.

      • Jessica

        I am having this issue. My tablet works properly when I turn it on but when I lock the screen it has the black screen and I can barely see the option to turn off or restart and when I restart the screen looks normal as before until I lock it again. Is this a firmware issue? I haven’t changed anything with the tablet. Just installed apps and an sd card but that was over a year ago. I will try your fix and see if it works. Thanks for your help.

      • yo

        i have a problem i factory rest my galaxy tab3 sm-t210 after thatt after end user licence i et wwhite screen with baterry only shown in the top right corner …if i click bag it takes me to end user licence what is the problem

  • Shaun

    Considered ours history until seeing this. Quick and easy fix. Impressive to say the least. This guy knows his stuff. Thanks a million

  • Harold J Carlson

    Awesome job. Just encountered this tonight after swapping new battery in my pro 10.1 Have reconnected many times but will try draining residual memory. Good reminder. Thanks for sharing your expertise. Ricardo you are a goood man!

  • Dawn Peterson

    I fixed this problem by holding down the power and volume button until it came to life
    I plugged it in before hand invade the battery was dead anyway and sure enough there was life and it was good! This is the 2nd time, but it is easy more simple. It was blank screen worth no response toi even charging. Yay!!

      • Ana Fi

        yayyyyyy woot woot…thanks for the tip Dawn, had a black screen and did as you suggested…it came on again…awesome. Thank you Ricardo Gardener for sharing…I always like to attempt to fix things first before taking it to the professionals ;-)….”I’m so happy, clap along….”

  • Melissa Robertson

    Well my problem is that I dropped my Samsung Galaxy tab4. But the problem is that the tab comes on but you can only see lines. I can move the screen but still see lines in color. I have the black screen but need to know how to repair.

  • Sia

    Hi have samsung tab 3 10′ .has black screen but can see back light and no sound. I have tried all the recommendations listed but still no luck.
    Any suggestions?

    • Ricardo Gardener Post author

      If you have exhausted the tips here and no results that’s the next logical thing to do. However if its the Black screen issue and nothing is wrong with the screen itself changing it might not help.

  • Michele Hastings Slattery

    Hi Ricardo, had the black screen problem & followed the fix, I’d just changed the battery, it worked but my screen quality is now really bad, can’t watch anything on it, any advice please?

  • Rachel W

    My LCD cable is on the right side (not over the battery). Are there two LCD cables? I bought a new one but that seems to have changed display from mostly pinks to mostly greens. I really don’t want to have to remove all cables across battery.

    This is a Samsung Galaxy Note 10.1 2012 edition.

    • Ricardo Gardener Post author

      Things might get moved around between versions you will have to look and try to figure what is what. I have no idea what you are looking at as I cant see. So you will have to get creative and use the principles that worked on this version of the tablet and apply them to yours.

  • ZAHID

    Thanks Ricardo Gardener,
    In pakistan samsung customer care centre was demanding $150 to fix the black screen problem, but after going through your blog, the problem solved successfully.
    Thank you once again.

  • lj

    My Samsung Tab fell on floor. First time, it had black shadow on left side and display was dark and not working. When rebooted, It powered on for a sec and then gone black. I tried powering on + pressing volume buttons together but does not work. Black screen with buttons glowing on center button press and makes sounds like its on.
    Do you think I need to open and fix and tighten up ribbons or some other damage?

  • LV Madama

    I need help my samsung take 4 10.1 when I increase the brightness of it it just went off and on repeating the samthing when it’s done the bettre drop from 100 percent to 4 percent even when I’m watching movies on it. How can I fix it

  • Sandra Witko

    SOUNDS GOOD ,but a video explains besr. Do u have a utube video ? My tablet 10.5 goes to a black screen with Samsung white logo after I am u eing it awhile. I turn off than on same screen , so to get back on I press home key and two top ones to the right till it let’s me boot up. THE PROBLEM JUST STARTED A MONTH AGO. SEPT 2016 , I let someone use it, possible they dropped it ? OR an up date. DON’T THINK IT’S EASY FOR A NON TEC TO DO THIS..THANK U FOR UR ADVICE. The tool kit u advise are expensive !

  • budmccall

    Read your advise but I have a samsung 8.4 model sm-t700 with the black screen problem. It looks completely different on the inside. I can’t find the LCD cable. Can you please tell me where it is?

  • Sazz

    My little one dropped our tablet and after watching your tutorial, opened it up and tightened the cable and it works again yay! Think I love you lol! Many thanks for saving me much needed pennies 🙂

  • The Dadoo

    Hi, during normal use the display has become totally black on my n8000. Touch , volume and sound are good but display is always black also when i press power on/off button. Solved, unplug battery connection, unplug ribbon lcd cable and replug all. Turn on and display works good

  • Garry Bourne

    Thank you, my daughter’s tablet has this problem, it went away under warranty , they realigned the cable but it has started again after 1 month, she taps the back of the tablet and it comes on, I’m trying to get a replacement new unit from Samsung

    • revdes09

      Oh my word i was reading this thinking no it can’t be that surely , got to your comment an thought eeyarrr slapped the back and seen a partial bit of the screen flash up haha ridiculous isn’t it you’d think they would stop it happening . Best had find a guitar plec i think and get cracking haha x

  • Andrew

    Shocking that Samsung haven’t sorted that problem seeing as it is obviously a known issue. Seen as I am not comfortable opening the device and risking voiding any warranty I will be sending the device back and demanding a refund. Thanks though, Ricardo. Very useful info.

  • anebiraOmeiza

    Awesome! THIS JUST WORKED FOR ME!!!. I was almost dumping my new Samsung Tab A6 2016 model and this fix worked like magic. Thanks a million times

    • Jeff

      anebiraOmeiza….how did you separate the back on the 2016 model? I am having the same problem and can’t seem to find the “edge” where to pry the back off (or seems VERY tight) on the newer model. Thanks.

      • Ricardo Gardener Post author

        Its there on all Tablets you only need a pick tool, looks allot like the one that they use on a guitar as found in most phone/tablet tool sets and get it into the grove. Its hard getting it in initially but it can so try hard.

  • Garry Bourne

    Tks for great info, my tablet is still under warranty, I sent it away to get fixed but it is still doing it
    Im trying to get a new replacement , but from what i can see this will be the same ??

  • Esther

    Hey, my tablet works generally very well but quite often it turns black. Normally when I change position. But then it could also work fine for an hour and another day it goes black every other minute. I may have dropped it at one point but cannot remember. Seems a loose contact. Do you suggest I follow your suggestion and open It?

  • Joseph C.

    So very similar to this issue but what happens with my Samsung Tab S 10.5 is that it will boot fine up to samsung logo. The buttons along the bottom will flicker for 4-5 seconds it will show my home screen and immediately go black. I’ve done extensive searching about this issue tried this pisted fix and followed some other advice about forcing gpu rendering or something along those lines through the dev mode. (This did not work and was attempted 2 hard reboots ago.) Now the trick is that is i hard reset the tablet it will work for a few days before the problem begins again. I only install my Plex enertainment app to watch my media on tablet while on the go. I’m 100% on the most recent official rom and bought the tablet 2nd hand from ebay so i don’t know where my warranty stands. Any ideas on what it could be? I can leave it on odin custom flash and recovery screen all day and screen works fine until it boots into the OS this has caused me much headache over the past year and I’ve about given up on the tablet.

    • Ricardo Gardener Post author

      Based on the details you have provided I would fist suggest that you try flashing to a fresh and genuine ROM if you are still having issue its almost safe to assume your issue is hardware related. Your situation is truly unique as I have not encountered your exact problem before.

  • Courtneyd

    I was hving the same problem all night. It was making noises, vibrating and everything but the screen would not turn on! I just got this thing less then a month ago so i was so upset then i told my lover and he was playing with it and hit it against his knee a couple times and it started working thanks!

    • Ricardo Gardener Post author

      Weird method of fixing but glad your device is working again.Any way other users be careful when handling your device as any form of shock might cause more harm than good and is not recommended(Friendly Reminder).

  • Wai Kay

    It actually worked!! I dropped my Tab S 10.5 and the screen went blank, though I could still hear it working well and Whatsapp Web was still connected. Couldn’t get it to turn off so just removed the casing with it still powered on!

    Had to remove the battery and after putting everything back it worked fine again. Took awhile to figure out how to open the ribbon clips cos I was worried I’d use too much force and break something.

  • Lyn Kekahuna

    I used your way of fixing my problem and IT WORKED!! I was so excited that I got to work again cause it when it turned black on me, which was about 3 months ago, I just put it away cause I was too scared to try to fix it, fearing I may make it worst. But thank you very much for your easy-to-follow directions!! I’m a HAPPY CAMPER again!!

  • Karina

    100% works! I did have a moment locating the “clip” which is on the bottom not the top of the ribbon in the diagram and working out how to pop it up…. I thought I did more damage working out which end it was but I put it back together and it’s working again now after googling “ribbon clip Samsung tablet” for that part but doing it as instructed here. I was pressing so many combinations of buttons (power + volume key etc) to no avail… . Thanks for the tip!

  • Jeanette

    Genius!!! I contacted a repair place and was told it would cost $230 to repair the tablet. I was hesitant to try something I would normally leave to the “experts”. I followed your directions to a T and nothing was happening for a few hours. I kept tapping the power switch and voila, it came to life! Thanks a million for this fantastic advice.

  • Dan

    Thanks, Mr. Gardner! You saved me some trouble. Your guide worked perfectly with the Galaxy Tab 10.1 A 2016 Edition as well.
    I expected it to be something like the display cable, but I never opened a device like this and was really afraid to break something. With your guide and some old credit card, it worked fine. I can not point it out enough: Please, people, use old credit cards. The card I used was ruined afterwards!

  • Matti Malo

    You did it very well. I had same problem. I opened tabled and just slide the cable more in. And that it was. Tablet is working again. Thank you

  • Neda

    Hello Ricardo..
    I have Samsung Galaxy Tab S2 .. the screen has black out …but the main concern is that sometimes I see a black screen with several colored lines .. (my little niece has dropped my tablet several times).
    is it possible that my tablet screen is damaged ? when it is in its normal time , I dont see any dark spots on screen ..it looks completely normal …
    would you please help me in this case …
    merci
    Neda

  • Char Walker-Foiles

    My tablet samsung galaxy tab e cannot come apart but has the black screen issue. Only about 7 months old and I didn’t buy the extended warranty. Any ideas?
