How to Open Galaxy S6 2


Today we will be looking at how to open Galaxy S6 which may be done for several reason the main ones being to either replace a damaged component such as the screen, dead battery,a charge port etc. or to attempt a repair to restore functionality to your smartphone. Now as you may know the Galaxy S6 is the first set of Samsung devices to feature a non-removable battery meaning that the battery is not easily removable as you have to disassemble the phone to do that which is not impossible, so let’s get started on opening the phone:

Things you will need:

1. Heat Gun..

2. Suction cup.

3. Small Philips screwdriver.

4. Playing cards, Pry tool (Guitar pick) or Pick from a phone opening tool kit.

5. Sim card remover.

6. Spudger.

Replacement Parts:

Battery.

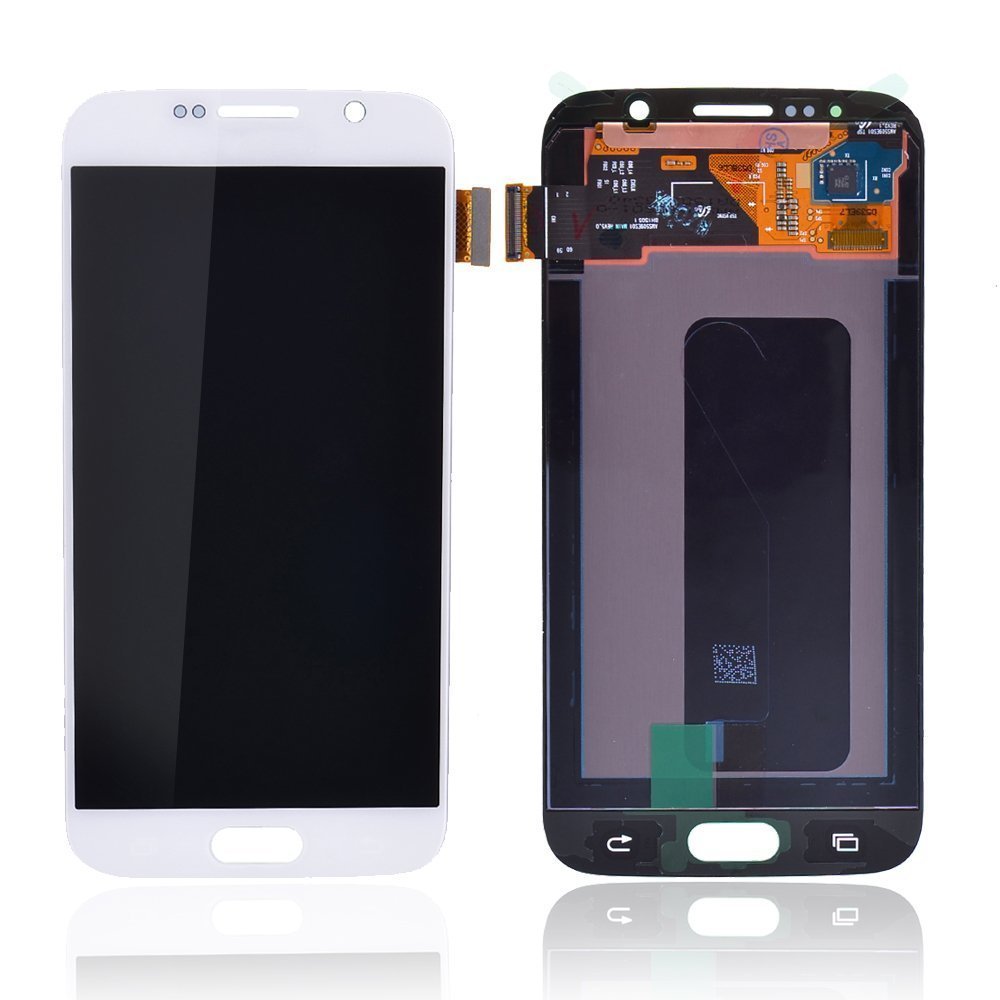

LCD Display Touch Screen Digitizer Assembly.

Micro USB Charge Port.



How to Open Galaxy S6?

Please note that the other devices in the series will open in a similar way considering them have a similar makeup.

1. Power off your phone and use the SIM removal tool to remove your phones SIM card.

2. Use the heat gun and heat up the back of your Galaxy S6 along the edges, your aim is to get the edges warm to melt the glue beneath the back cover this will only take a few seconds and all you have to do is to run the heat gun in a constant motion and never rest at a single spot until its warm.

3. Using a suction cup attach it to the back of the phone and start to pry the back off gently, a gap should start to appear along the edges, use the pry tool or guitar pick  and get it into the grove and rotate it in the grove all the way around to remove the back, do not force it as if the adhesive is warm enough the pick should be enough to separate the back without breaking the glass on the back of the device. If you encounter resistance reheat the back as in the step above. Never over do it or force the back off aggressively it should separate relatively easily.

how to open galaxy s6

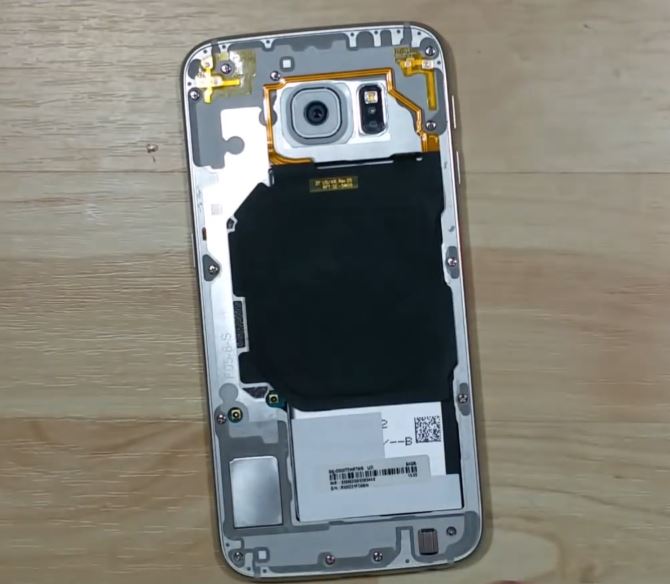

4. Once the back is off their will be a total of 13 screws in the back that you will need to remove that are all under the back cover at various points. Next lift the charging mat that’s over the battery so you can see the battery.

5. Now you will need to heat up the front of the device along the edges to this time loosen the adhesive holding the front of the device in place. Now attach your suction cup on the front be extremely careful here, using the pick move it along the edges in the grove on the front to separate the front panel using the pick all the way along the glass. Do not remove the front totally.

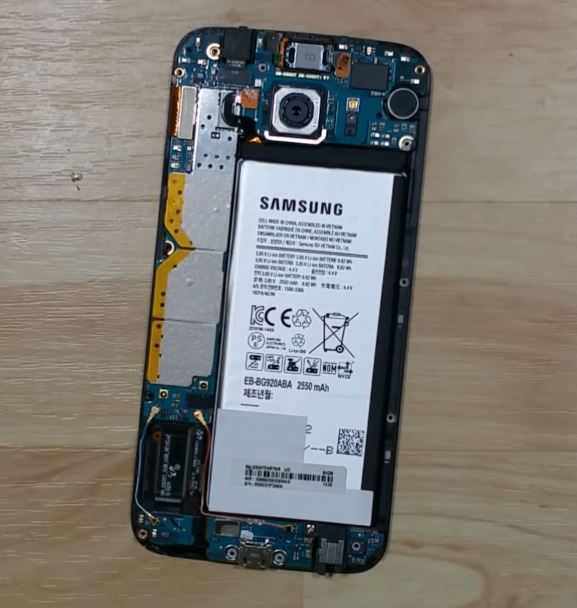

6. Withe the front section loosened push from the back on the battery and the front should pop right out if not use your pick to help it along. The front should separate from the body leaving the metal frame of the sides.

how to open galaxy s6

7.Next we will remove the cables to release the circuit board, a spudger will do for this you can find the cables next to the camera, simply pull them up to detach them and be careful not to damage any other components. These cables control the front camera, display, the cable for the battery and for the ear piece speaker.

Towards the lower left you will find the two antenna cables and a home button cable also disconnect them. After this the Circuit board that has the camera attached to it will come right off when pulled, careful as there is a cable to disconnect behind it at the lower left so lift then separate with the spudger.

8. You can now unscrew the screws to the base that hold the charge port and home button mechanism. To remove the battery simply stick the spudger beneath the battery and carefully seperate it by twisting the spudger beneath the battery which should be enough to loosen the adhesive that’s holding it down. It should remove easily after this.

9. Next pull up the charge port ribbon cable and the port is held in place by some adhesive so be careful, don’t pull it all the way out. For most users this is as far as they will need to go to do a repair, do not go any further unless your display is broken as it difficult to remove the display.

Related Articles

  1. How to Fix the Black screen Issue on a Samsung Galaxy Phone.
  2. Fix the Black Screen Issue using the Heat Gun Reflow Method.
  3. How to fix the Black Screen issue in the Samsung Galaxy S6 or newer devices.

10. Remove the vibration module with a pick in the upper right and the earpiece speaker, pull back the home button cable. Heat up the back of the device using a L shaped pattern,Only do this if your display is damaged. Heat the front as well, now use a playing card or something of similar thickness and get it between the front top portion of the display and down the side, watch out for cables and reheat the back a bit if necessary and stop just short of the home button with the card. Heat the bottom portion next to the home button again and separate carefully.

how to open galaxy s6

From here on out you can replace the screen or whatever else you like such as the home button. That concludes our teardown of the Galaxy S6 it’s not one of the easiest things to do but it’s not impossible please share or leave a comment below.
